Air Compressor Generator Power System

VMAC’s Air Compressor-Generator Power System is ideal for customers who need an air compressor and AC generator.

This self-contained system can be fully integrated into any diesel work truck fuel system or skid-mounted for stand-alone applications with an optional external fuel tank.

Request a Quote

Components included:

  • 45 CFM Rotary Screw Air Compressor
  • 10.2 kW AC Generator
  • Factory-installed Cold Climate Kit – 120V, tested to -40°F (-40°C)

Applications – Common jobs that use the Air Compressor-Generator Power System:

  • Mobile heavy duty mechanics
  • Heavy equipment repair technicians
  • Mobile tire service technicians
  • 24/7 roadside repair technicians

Air Compressor-Generator Power System Benefits

Free Up Space

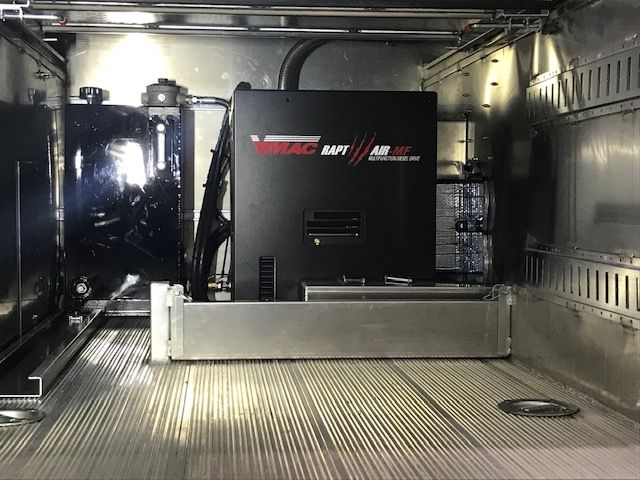

VMAC Multifunction Power Systems leave more space on your truck deck or cargo area because they combine multiple functions into one compact system. The overall system size is six cubic feet smaller than other leading multi-power brands and designed to fit on the side pack of a service truck with a slider.

Reduce Weight

VMAC’s Multifunction reduces truck GVW by 420 lb. Choosing a lightweight multi-power system means you’ll be able to add more tools and equipment to your truck, carry more materials, take advantage of better fuel economy, or even downsize your truck classification.

Reduce Truck Maintenance & Fuel Costs

Multifunction Power Systems save truck maintenance costs and improve fuel economy by allowing you to turn your truck engine off while on the job site. The control system not only automatically idles the system’s engine up/down with air demand, it also turns the engine off/on with air demand.

Easy To Operate & Switch Between Systems

VMAC Multifunction Power Systems allow you to seamlessly switch between operations, without the hassle of complicated controls or maneuvering multiple machines on the job site. This means more time working, improving productivity, and getting your customers back to work faster. It is designed for ease-of-use, to run efficiently with only one operator.

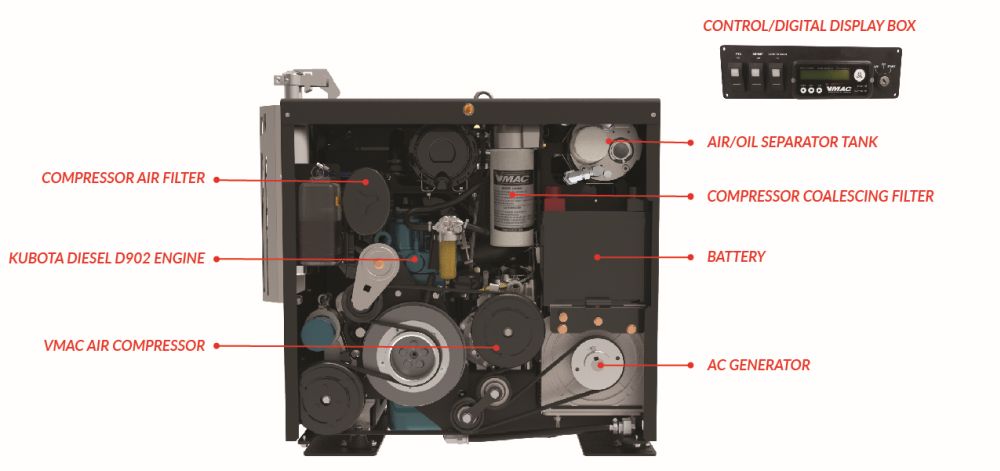

Air Compressor-Generator Power System Components

Air Compressor

Oil-injected rotary screw; belt-driven; 45 CFM @ 100 psi; 100% duty cycle; up to 175 psi

AC Generator

AC: 10.2kW continuous output; 1 x 30 A, 240V, 60 Hz three phase circuit with terminal strip; 2 x 20 A, 120V, 60 Hz single phase circuit with terminal strip

Kubota D902 Diesel Engine

Tier 4 Final; 3-cylinder, naturally aspirated 3,600 RPM

Control/Digital Display Box

Remote mounted; electronic key switch; selector switches for GENSET/COMPRESSOR; LCD for compressor on/off controls, observing system status and adjusting parameters

Air/Oil Separator Tank

Separates compressor oil from compressed air

Battery

Included ACDelco 12V, 460 CCA, 575 CA

Cold Climate Kit For -40º

Cold Climate Kit is recommended if ambient temperatures frequently drop below -10ºC (14ºF); combine with an optional 1,750 W inverter to warm the system on the way to the job site

Air Compressor-Generator Power System Specifications

Air Compressor Output
  • 45 CFM @ 100 psi (175 psi max)
Air Compressor Type
  • Belt-driven, 100% duty cycle, VMAC oil-injected rotary screw
Engine
  • Kubota D902 Diesel 3-cylinder, naturally aspirated 3,600 RPM, Tier 4 Final
AC Generator
  • 10.2 kW continuous AC output
  • 1 x 30 A, 240V, 60 Hz three phase circuit with terminal strip
  • 2 x 20 A, 120V, 60 Hz single phase circuit with terminal strip
Battery
  • ACDelco 12V, 460 CCA, 575 CA
Control System
  • Easy to use digital control system with adjustable parameters
  • Remote mounted generator and compressor control panel
  • Any one function or both can be selected at any time
  • 2-speed throttle control responds to air demand
  • Separate selector switches engage compressor and generator
  • With compressor-only selected, and sustained periods of no air use, the control system will shut down the engine
  • Engine auto-restarts on air demand
Cold Climate Protection
  • Engine and compressor will wait until the temperatures are above 41°F (5°C) before loading and going into a running state
  • Engine will automatically restart when system temperature falls below 23°F (-5°C)
  • Small heat strip included in LCD Digital Control Box
Cold Climate Kit
  • Recommended if ambient temperatures frequently drop below -10ºC (14ºF)
  • Plugs into a 110V power source and the compressor and separator tank heaters will turn on
  • Optional 1,750 W power inverter allows cold climate kit to engage on the way to the job site
Weight (wet)
  • Approximately 550 lb (249 kg)
Dimensions
  • 33” (l) x 23” (w) x 29” (h); 83.8 cm (l) x 58.4 cm (w) x 73.7 cm (h)
  • Base footprint: 30” (l) x 20” (w); 76.2 cm (l) x 50.8 cm (w)
Decibels (dB) @ 21 feet (6.4 meters)
  • 81.2 dB at high idle, 76 dB at low idle, 0 dB in Standby Mode
Fuel Supply Options
  • 7-gallon tank with fuel gauge and low fuel shut-off sensor
  • External Diesel Fuel Pump Kit
Air Receiver Tank (recommended, not included)
  • Minimum 10-gallon air receiver tank recommended for proper operation of all functions
Warranty
  • Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited)
  • Kubota engine covered by Kubota’s 2-Year warranty
  • For more information about VMAC’s warranty policies, visit www.vmacair.com/warranty
