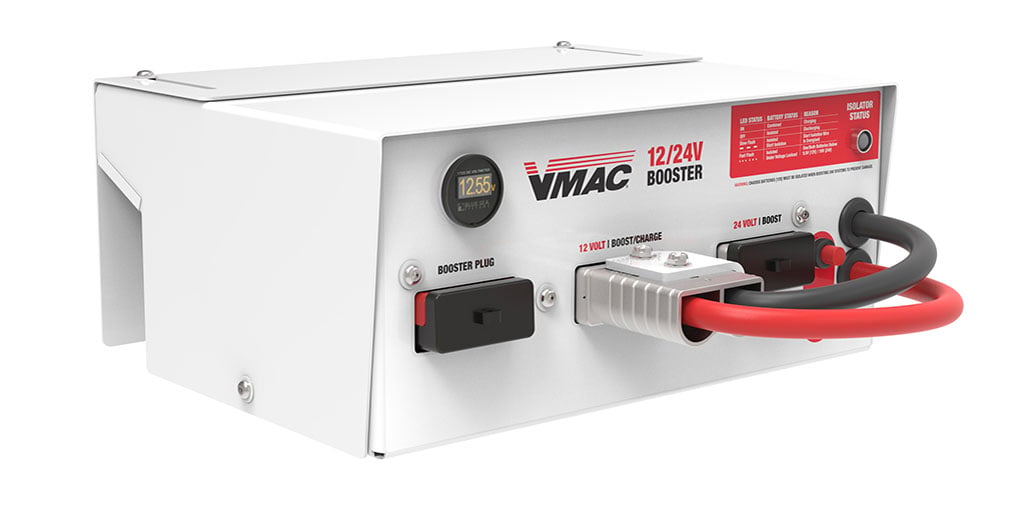

VMAC A12/24V Battery Booster
A700359
Description
The VMAC 12/24V Battery Booster is a compact battery boosting system designed for service vehicles that need to support both 12-volt and 24-volt equipment in the field. Using independent booster batteries isolated from the chassis during use, the system helps provide reliable boosting performance while the service vehicle alternator maintains charge between boosting cycles.
Built for integration into service truck installations, the VMAC 12/24V Battery Booster can be mounted inside a weatherproof cabinet and configured with cable options to suit a range of applications, including standard clamp-style boosting and CAT boost port connections. Booster cables and batteries are sold separately.
Benefits
12 V And 24 V Boosting: Designed to boost both 12-volt and 24-volt equipment from a single integrated system, helping service vehicles support a broader range of field applications.
12 V Charging: Provides boost and charge functionality in 12-volt mode, allowing the service vehicle charging system to help maintain booster battery charge and prepare for the next boosting cycles.
Independent Battery Isolation: Utilizes independent boosting batteries that are isolated from the chassis during use, helping protect the source vehicle system while maintaining readiness for repeated boosting cycles.
Compact Installation Footprint: Small footprint design allows the booster to be incorporated into a variety of service truck or equipment support configurations.
Field-Ready Service Integration: Can be installed in a weatherproof cabinet and positioned to suit cable reach requirements, making it well suited for mobile service applications.
Flexible Cable Options: Compatible with standard booster cables with clamps or CAT-style booster cables, with multiple accessory cable lengths available from VMAC.
Applications
Service Trucks & Vans: Ideal for service trucks and vans that need onboard battery boosting support for field repairs and equipment recovery.
Construction and Heavy Equipment Support: Supports boosting of 12-volt and 24-volt equipment, including machines using CAT-style boost connections.
Fleet Maintenance Operations: Helps fleet maintenance vehicles deliver fast, integrated battery boosting capability without relying on separate
portable units.
Specifications
- Primary Functions: Boosting - 12 V/24 V; Charging - 12 V
- Booster Battery Isolation: Independent booster batteries isolated from chassis during use
- Dimensions: 17.75” (l) x 16.6” (w) x 7.5" (h); 45.1 cm (l) x 42.2 cm (w) x 19.1 cm (h)
- Weight: 31.6 lb; 14.3 kg
- Warranty: 1 year on booster & cables, for details, visit www.vmacair.com/warranty
- Installation
- Mount inside a weatherproof cabinet
- Mount using four 1/4-20 threaded mounting holes in base
- Booster/Charger Battery Wiring Required (not included):
2 x 2/0 black, 2 x 2/0 red, and 1 x 2AWG black, 1 x 2AWG red
(Cable length between the booster and booster batteries should not exceed 25 ft) - Fusing Required (not included): 2 x 300 A
- Booster Batteries Required (not included): 2 x 8D series with minimum 1,500 CCA each
- Booster Cables Required (Not Included)
- 7 Foot Booster/Jump Start Cables with CAT Boost Port Connector (Part Number: A700371)
- 10 Foot Booster/Jump Start Cables with Clamps (Part Number: A700372)
- 30 Foot Booster/Jump Start Cables with Clamps (Part Number: A700373)

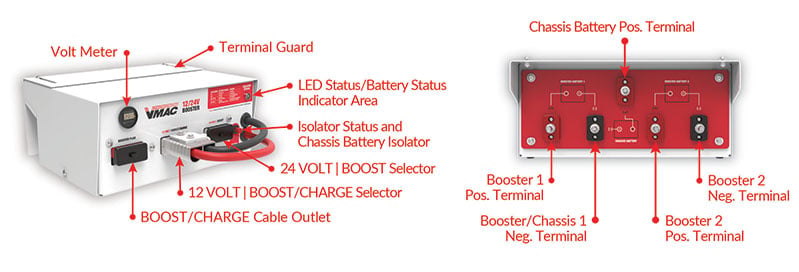

Components
Optional Equipment
7 Foot Booster/Jump Start Cables with CAT Boost Port Connector
A700371
Booster cable accessory for CAT-style boost port connections.
10 Foot Booster/Jump Start Cables With Clamps
A700372
Booster cable accessory with clamps for standard boosting applications.
30 Foot Booster/Jump Start Cables With Clamps
A700373
Longer booster cable accessory with clamps for applications requiring additional cable reach.
