VMAC Air Manifold

A700357

Description

VMAC’s multi-port air manifold helps transform any service truck or van into a fully integrated pneumatic workstation. A singular precision-machined billet aluminum manifold block is engineered to accommodate a wide range of hoses for air tools, so operators can easily switch between tools for maximum productivity, reducing setup time and preserving air pressure. The VMAC Air Manifold is an essential component of any air compressor system providing an efficient and organized compressed air delivery.

Benefits

Multi-Tool Connectivity: Equipped with three automotive/industrial couplers – 1/2“ & 3/8” quick-connect fittings, and 1” Chicago fitting – supports various hose sizes and tools, including jackhammers.

Heavy Duty Performance: Handles air flow up to 185 CFM and pressures up to 200 psi, ensuring compatibility with most mobile air compressor systems.

Energy Efficiency: Reduces pressure drops and shortens air flow paths, which can lead to energy savings and lower operating costs.

Durable Construction: Machined from 6061-T6 aluminum billet and anodized, offering a lightweight yet robust solution resistant to corrosion and wear.

Vehicle Organization: Allows compressed air to be easily directed to multiple applications or tools without the mess of adapter fittings and air hoses.

Safety | Depressurizes Tools: The manual ball valve with a sintered exhaust muffler safely and quickly relieves air pressure in the tool circuit, offering a safer hose disconnection process.

Applications

Service Trucks & Vans: Enhances efficiency by allowing quick connections to multiple pneumatic tools without the need for additional shut off valves and adapters.

Construction Sites: Provides appropriate coupler sizes for various hose sizes and air tools including jackhammers, impact wrenches, and blow guns.

Air Compressor Applications: Supports compressed air tasks requiring different air pressures and flow rates, ensuring tools operate at optimal performance. The system can be supported by one in-line adjustable air pressure regulator.

Specifications

• Max Air Flow: 185 CFM
• Max Air Pressure: 150 - 200 psi
• Couplers:
  • 1/2” Quick-connect fitting (200 psi)
  • 3/8” Quick-connect fitting (200 psi)
  • 1” Chicago fitting (150 psi)
• Compressed Air Inlet: 1” NPT Ball Valve
• Pressure Gauge: 2.5” NPT Analog NPT (200 psi max)
• Blow-Down Valve: 1/4” NPT ball valve with sintered exhaust muffler
• Operating Temperatures: -30^oC to 40^oC; -22^oF to 104^oF
• Dimensions (manifold only): 1.9” x 5.9” x 4.65”; 4.83 cm x 14.99 cm x 11.81 cm
• Dimensions (manifold with fittings): 1.9” x 12.2” x 11.41”; 6.35 cm x 30.99 cm x 28.98 cm
• Weight (manifold only): 3.3 lb (1.5 kg)
• Weight (manifold with fittings): 7.85 lb (3.56 kg)
• Manifold Material: 6061 T6 Aluminum

Download PDF Spec Sheet

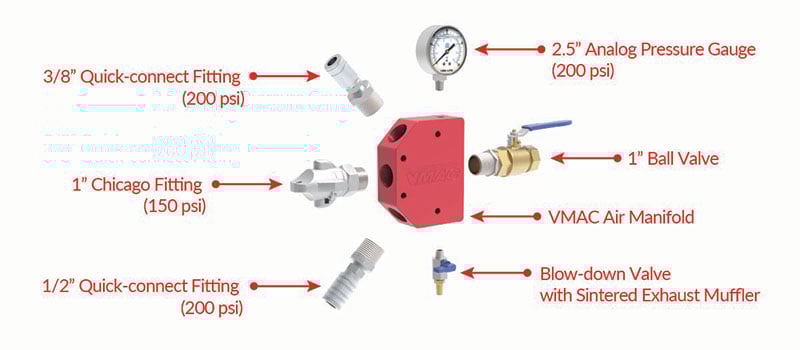

Components
