Types of Portable Diesel Air Compressors

September 6, 2023

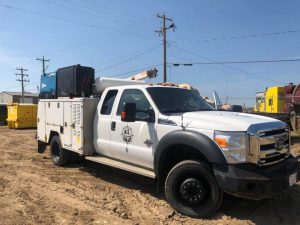

diesel-compressor-service-truck-768x576Portable diesel air compressors come in numerous styles, sizes, and formats. In this article, we’ll talk about the three most common types of diesel-powered portable air compressors so you can make sense of your various options.

The most critical differences between diesel air compressors are the intended market, which in turn impacts their quality and cost.

Diesel air compressors are designed with one of three targets in mind:

  • Residential / Casual
  • Commercial
  • Industrial

Residential Portable Diesel Air Compressors

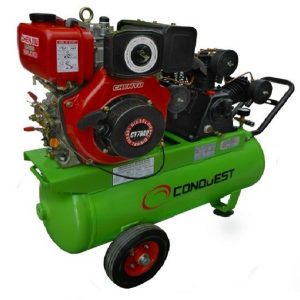

hobby-diesel-air-compressorResidential, hobby, and casual-use air compressors are the ones you will commonly find at Home Depot, Amazon or eBay. They typically offer less than 10 CFM at 90 PSI and are best suited for small, personal projects or operators who only need light air on a very irregular basis.

These air compressors need to be portable and are typically light enough to carry or pull by hand so they can tuck away when they’re not in use.

While diesel air compressors for personal use exist, they can be challenging to find, and most big box stores carry a more comprehensive selection of gas-powered air compressors instead.

Residential Diesel Air Compressor Overview

  • Up to 10 CFM @ 90 PSI
  • Reciprocating air end
    • Requires 1- to 80-gallon air receiver tank
  • Pancake or hot dog air receiver tank
  • Hand-carry or wheels
  • Difficult to find

Choosing A Portable Residential Diesel Air Compressor

Residential air compressors are almost always reciprocating air compressor systems, as this is the most cost-effective form of air compressor.

Reciprocating air compressors require filling an air receiver tank before using the compressed air. These air tanks are the most noticeable feature of residential air compressors. Residential air compressors typically come with an air receiver tank between 1 and 80 gallons, and these tanks are available in a “hot dog” or “pancake” shape. There is no notable benefit to one tank shape over the other.

Hobbyist air compressors will usually provide enough air for everyday household air tools, including drills, nailers, and small impact wrenches.

In today’s market, diesel-powered variations of residential-grade air compressors are rare. Most manufacturers favor an electric or gasoline power source, as these are easier to source for most casual air tool users.

If you’re looking for more information on low CFM, budget-friendly air compressor options for residential use, check out Home Depot’s Air Compressor Buying Guide.

Portable Diesel Air Compressors For Commercial Use

d60-2Commercial-grade portable diesel air compressors are the next step up. They are best suited for most applications using 60 to 250 CFM of compressed air, including tire service, construction, municipal utilities, and mobile mechanics.

Commercial air compressors are designed for operators who use air regularly and need access to air wherever they go. These heavy-duty air compressors usually weigh 500 to 2,000 pounds, so they are towed on a hitch, skid-mounted, or mounted directly to a service vehicle chassis.

Tow-behind air compressors have their purpose for commercial use, but their cons outweigh the pros unless an application requires large amounts of air or continuous air on the job site for long periods. For this reason, we favor a vehicle-mounted diesel air compressor for commercial projects using smaller, standard air tools, such as the VMAC D60 diesel air compressor.

Commercial Diesel Air Compressor Overview

  • Up to 250 CFM @ 150 PSI
  • Rotary screw or reciprocating air end
    • Air receiver tank optional for rotary screw
  • Vehicle-mounted, skid-mounted, or tow-behind

Options For Commercial-Grade Portable Diesel Air Compressors

There are numerous advantages to commercial-grade portable diesel air compressors: a high CFM and PSI range, rotary and reciprocating air end options, and the ability to power most tools in a diverse range of applications.

While many options are available for portable diesel air compressors at the commercial level, it’s important to recognize that not all options are equal. Better quality air compressors, including rotary screw compressors, tend to come at a higher upfront price point but can save money in the long-term due to their longevity.

If you rely on compressed air to get your work done, we recommend only working with manufacturing brands that have a lifetime warranty on their air compressors. Top-shelf air compressor manufacturers will stand behind their products to ensure they last as long as you need them to.

Discover 6 awesome features of VMAC’s D60 diesel air compressor…

D60 banner

Industrial-Grade Portable Diesel Air Compressors

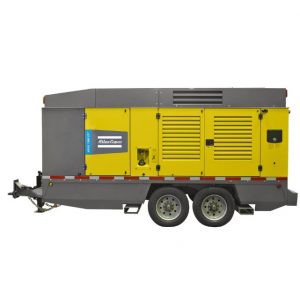

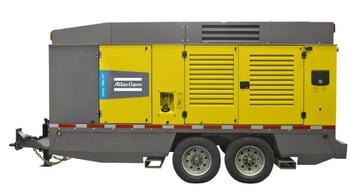

atlas-copco-portable-diese_resizedLast but not least, there are also industrial diesel air compressors. Industrial compressors are large machines used for specialized purposes, tend to stay on job sites for the duration of a project, and are made by industrial supply companies, including Atlas Copco and Sullair.

Industrial air compressors can produce very high CFM and high PSI but have an equally high price tag. They generally come in tow-behind or utility-mounted models. If you're not sure whether you need an industrial-grade air compressor for your work, you probably won't.

Industrial Diesel Air Compressor Overview

  • Up to 1,800 CFM @ 500 PSI
  • Rotary screw or centrifugal air end
  • Tow-behind or utility-mounted

Options For Portable Industrial Diesel Air Compressors

Industrial diesel air compressors are designed for applications that require high CFM, with options over 1,800 CFM available.  These air compressors are used to power large pneumatic tools and equipment or multiple large tools at a time.

Industrial diesel air compressors tend to come in tow-behind or utility-mounted models, allowing the air compressors to be moved by either a truck, forklift, or crane.

Most diesel industrial air compressors use rotary screw designs, although some rare exceptions exist. Because industrial applications are so varied and unique, the best way to find the right industrial-grade diesel air compressor for your work is to talk directly with the major manufacturers or with a trusted industrial equipment supplier.
