Stacked Gas Powered Air Compressors

Overview

VMAC’s stacked G30 gas powered air compressor is the best choice for operators who want the smallest possible footprint on their work truck, without compromising on power or performance.

Applications – Common jobs that use the compressor system:

2020_Top50_Contractors_Award WinnerLogo
  • Light/medium duty mobile mechanics
  • Mobile tire service technicians
  • Light duty contractors

Commonly used tools:

  • 3/4” impact wrenches
    • Up to 1″ impact wrench with a small air receiver tank
  • Backfill tampers
  • 2” Horizontal grinders
  • Chipping hammers
  • Die grinders
  • Tire inflation
  • Air wands/blow guns

Benefits

30 CFM. 100% of the Time.

VMAC G30 gas powered air compressors include a patented 30 CFM rotary screw air compressor designed to produce full air power, 100% of the time, so you don’t need an air receiver tank. Get jobs done faster, without interruption.

61% Smaller

The VMAC G30 was mindfully designed with one goal: to easily fit in modern service trucks. The newest G30 is stacked vertically, which significantly reduces the amount of vehicle space it requires, allowing it to fit either in the rear service body compartment or in the bed of a pickup truck. With a footprint of just 2.5 square feet, the stacked G30 is 61% smaller than competitive models.

59% Lighter

VMAC G30 gas powered air compressors are engineered and manufactured for mobile applications. Weighing less than 210 lb, the VMAC G30 is up to 59% lighter than typical 22 – 30 CFM reciprocating gas engine driven air compressors with a 30-gallon air receiver tank. Choosing a lightweight air compressor means you’ll be able to add more tools and equipment to your truck, carry more materials, or save money with better fuel economy.

Industry-leading Reliability

VMAC G30 gas powered air compressors are proven to work in extreme cold climates across North America when ordered with an optional, factory-installed cold climate kit. Engines supplied by Honda come with an industry-leading 3-year warranty and VMAC rotary screw air compressors come with the industry’s first Lifetime Limited Warranty. For peace of mind, without the headache.

Components

AIR COMPRESSOR
100% duty cycle VMAC rotary screw, 30 [email protected] psi. Backed by a Lifetime Warranty*

*For more information about VMAC’s Lifetime Warranty Policy, please visit www.vmacair.com/support/warranty/.

ENGINE
GX390 air-cooled 4-stroke OHV; CARB and EPA certified; Honda 3-Year Warranty

WHASP TANK
Patented integrated oil/air separator and air/oil cooler

THROTTLE CONTROL
Controlled by system air pressure, idles up/down automatically with air demand

DRIVE SYSTEM
Gearless, clutchless, auto-tensioned serpentine belt, aluminum belt-guard

UNLOADER
Decreases engine load, lowers sound levels, reduces fuel use and engine wear

BATTERY
ACDelco 12V, 460 CCA, 575 CA

FUEL SUPPLY
Manual choke, Fuel on/off

FUEL TANK
1.6 gallons (6.1 L)

ELECTRONIC KEY SWITCH
Electric start; hour meter

OPTIONAL EQUIPMENT

10-GALLON AIR RECEIVER TANK (A300047)
Remote-mounted 10-gallon air receiver tank with mounting feet; includes fittings, valves, gauge and tank drain; 200 psi max; ASME certified.

COLD CLIMATE KIT* (A500044)
Heats up the G30 on the way to the jobsite. Required in below freezing temperatures.
*800W Power Inverter required

800 W POWER INVERTER (A500181)
800 W, 12 V power inverter; required to power the VMAC G30 gas powered air compressor cold climate kit.

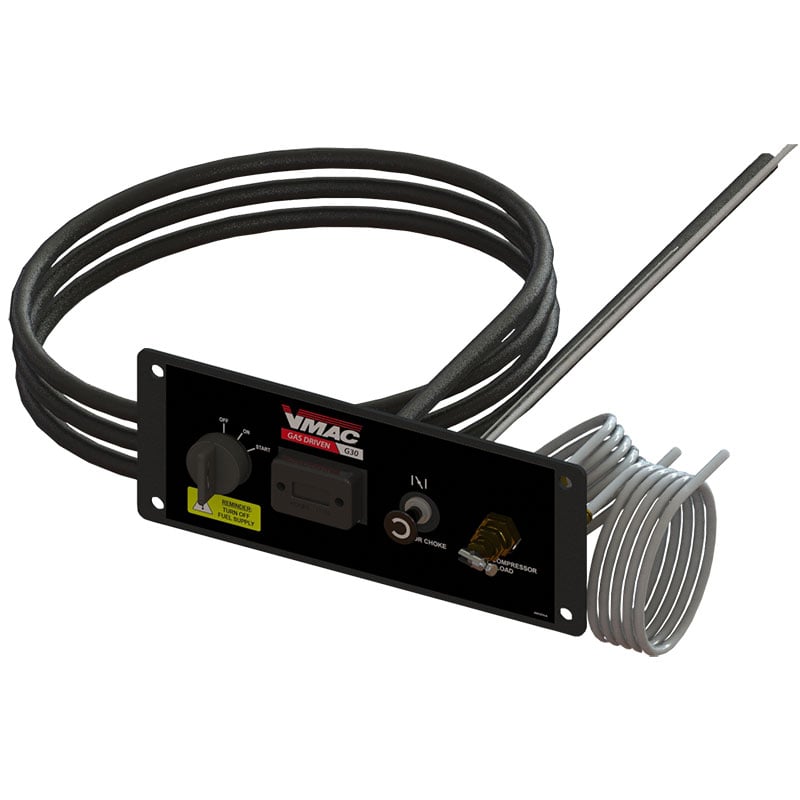

REMOTE CONTROL PANEL (A500237)
Remote panel with a 10-foot extension for key switch, hour meter, and choke.

Specifications

  • Air Compressor Output

    30 CFM @ 100 psi (150 psi max)

  • Air Compressor Type

    Belt-driven, 100% duty cycle, VMAC oil-injected rotary screw

  • Engine

    Honda GX390 air cooled 4-stroke OHV with electric start, CARB and EPA certified, Honda approved application.

  • Weight (wet)

    Approximately 210 lb (95 kg)

  • Dimensions
    • 20” (l) x 18” (w) x 38” (h)/ 50.8 cm (l) x 45.7 cm (w) x 96.5 cm (h)
    • Mounting Plate: 16.75” (l) x 10.75” (w) / 42.5 cm (l) x 27.3 cm (w)
  • Throttle Control

    2-speed throttle, responds to air demand

  • Battery (included)

    ACDelco 12V, 460 CCA, 575 CA

  • Control System
    • Key switch, choke, hour meter
    • Automatically idles down/up with air demand
    • Unloader decreases engine load, lowers sound levels, reduces fuel use and engine wear
  • Safety System
    • Compressor thermal protection circuit
    • Automatic rapid blow-down valve on tank
    • 200psi pressure relief valve
    • Low engine oil pressure shutoff
  • Decibels (dB) @ 20 feet (6.1 meters)

    81 dB at high idle; 67 dB at low idle

  • Fuel Tank Capacity

    1.6 gallons (6.1 L)

  • Air Receiver Tank (recommended for high duty cycle applications in hot climates)

    10-Gallon Air Receiver Tank w/ Mounting Feet – Remote-mounted 10-gallon air receiver tank with mounting feet; includes fittings, valves, gauge, and tank drain; 200 psi max; ASME certified. 30.0” (l) x 10.0” (d) / 76.2 cm (l) x 25.4 cm (d); 33 lb (15 kg)

  • Warranty

    Two years on all major components; VMAC air ends are covered by VMAC’s Lifetime Warranty (Limited); Honda engine is covered by Honda’s 3-Year Warranty.
